Okamoto
ACC SA-SERIES
| OKAMOTO | |||

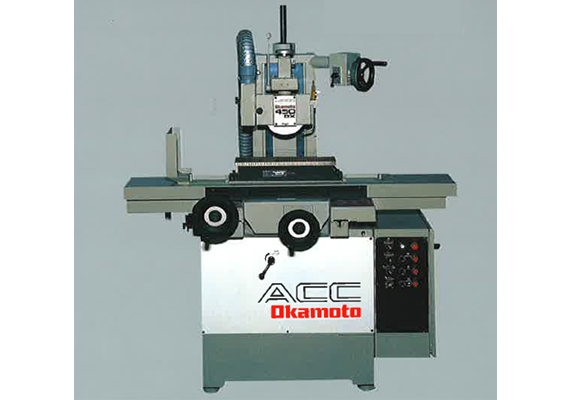

| Items | Units | ACC450DXA | |
|---|---|---|---|
| ACC-450-DXA | Product Line Up | ||
 |
Table Working Capacity (L x W) | mm | 510 x 150 |
| Side Standard Chuck Size (L x W) | mm | 450 x 150 | |
| Table Load Capacity (Include Chuck) | mm | 120 | |

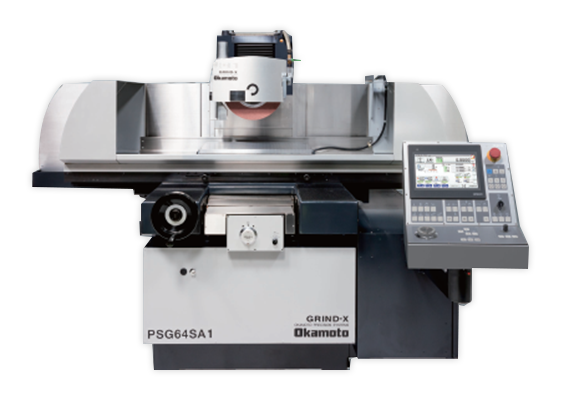

| ACC-SA Series | Items | 52SA1 | 63SA1 | 64SA1 | 65SA1 | 84SA1 | 105SA1 |
|---|---|---|---|---|---|---|---|
 |
Table Working Capacity (mm) |
505 x 200 | 605 x 300 | 605 x 400 | 610 x 500 | 805 x 400 | 1016 x 500 |
| Max. Table Travel (mm) |
650 x 230 | 750 x 340 | 750 x 440 | 750 x 540 | 950 x 440 | 1150 x 540 | |
| Side Standard Chuck Size (mm) |
500 x 200 x 75 | 600 x 300 x 75 | 600 x 400 x 85 | 600 x 500 100 | 800 x 400 x 85 | 1000 x 500 x 100 | |
| Table Load Capacity (Include Chuck) (mm) |
200 | 420 | 420 | 700 | 700 | 700 |
