OPS INGERSOLL
OPS – Gantry Eagle Series
| OPS INGERSOLL | |||

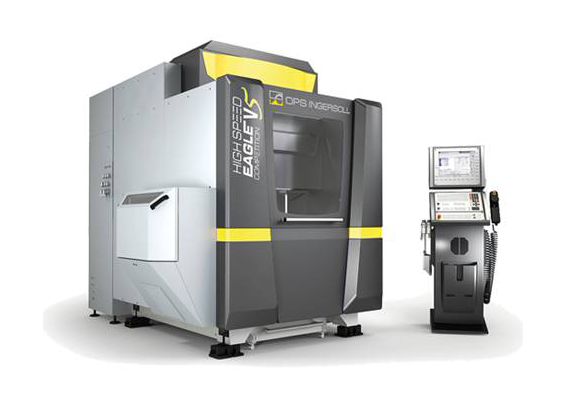

| Items | Eagle V5 | Eagle V9 | |
|---|---|---|---|
| Eagle V5 – V9 Series | Product Line Up | ||
 |
Travel(X x Y x Z)(mm) | 550 x 400 x 400 | 800 x 600 x 500 |
| Travel Speed (m/min) | 30 | 30 | |
| Table Clamping Surface (X x Y)(mm) | 650 x 490 | 1000 x 660 | |
| Spindle Power (Kg) | 15KW/17KW | 15KW/17KW/25KW | |

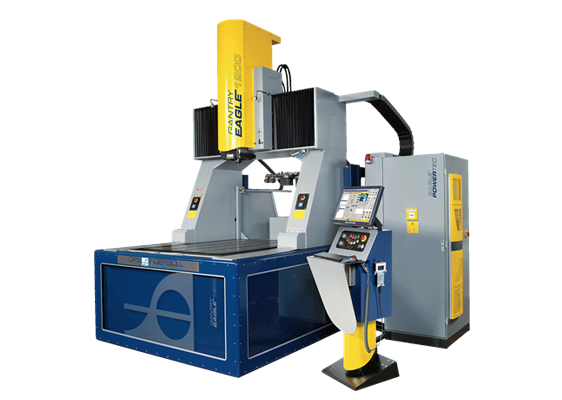

| Gantry Eagle Series | Items | Gantry Eagle 400 |
Gantry Eagle 500 |
Gantry Eagle 800 |
Gantry Eagle 1200 |
Gantry Eagle 1400 |
Gantry Eagle 1400 Plus |
|---|---|---|---|---|---|---|---|
 |
Travel (X x Y x Z) (mm) |
420 x 300 x 400 | 525 x 400 x 450 | 550 x 850 x 450 | 1010 x 1510 x 700 | 1250 x 2350 x 700 | 1250 x 2350 x 900 |
| Work Table (L x W) (mm) |
550 X 470 | 750 x 650 | 760 x 1000 | 1140 x 1640 | 1380 x 2380 | 1380 x 2380 | |
| Load Capacity (KW) |
500 | 1000 | 2000 | 7500 | 10000 | 10000 |
